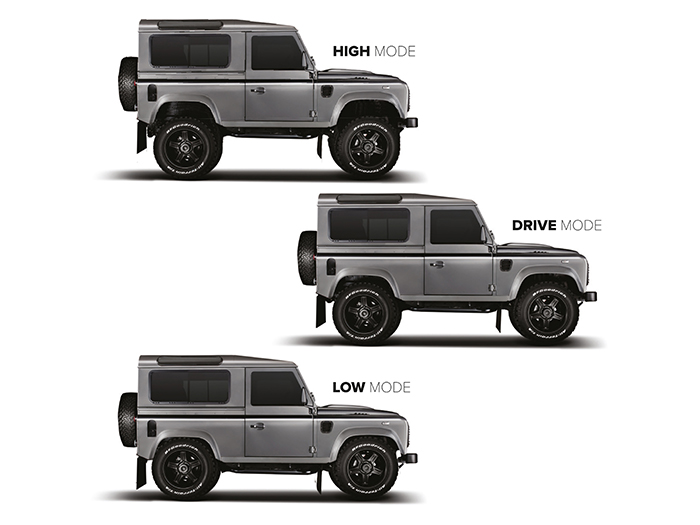

Height Range Automatic Mode
Ride Height up to Raised Height - Front: 40mm / Rear: 40mm
Ride Height down to Access Height - Front: -80mm / Rear: -80mm

Height Range Manual Mode
Maximum Height from Ride Height - Front: 50mm / Rear: 50mm
Minimum Height from Ride Height - Front: -100mm / Rear: -100mm

Why Intelliride ECAS?

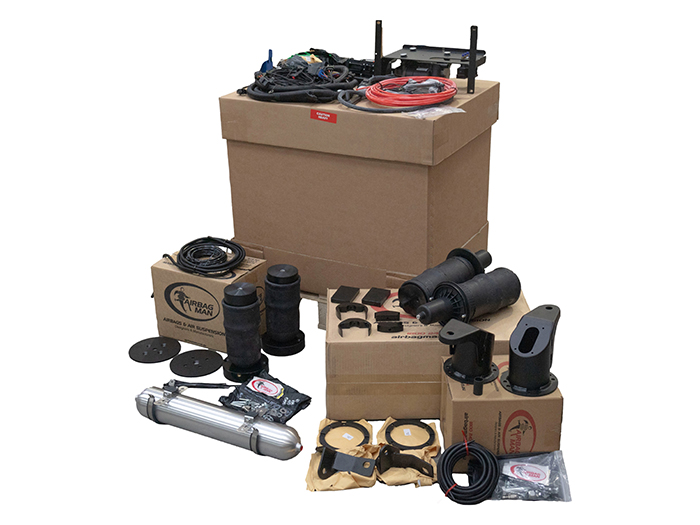

This front and rear axle full air suspension kit incorporates on-board air control which is a fully automatic Electronically Controlled Air Suspension (ECAS) System. When fitted, the system provides comfort while maintaining a programmed ride height irrespective of the load. Multiple vehicle heights are available at the push of a button.

The on-board system has automatic load levelling at each height which continuously monitors inputs and component performance as a means of increasing safety and durability. The on-board system recognises and responds accordingly to potholes, cross-articulation and extended turns. This intelligence prevents unnecessary activity and air consumption, it even recognises unachievable heights, assisting in the prevention of possible damage above or below the vehicle.

Defender 90 - Td5 onwards
